IBIS Smart-binder options - 2-up sheet direction change system TUSDC-100
The TUSDC-100 modules may be installed inbetween a web cutter and the IBIS Smart-binder to enable A5 (or 5½ x 8½") booklets to be produced from a 450mm (or 17½ - 18") wide web using 4-page sheets. This is an alternative to the RF-100 solution which uses 8-page sheets.
The web is cut into sheets using both a cross cut and a longitudinal center-slit. Two sheets approx. size 225 x 320mm (or approx. 9 x 12") are delivered side-by-side from the web cutter. The sheets are then separated by the double alignment conveyor to introduce a gap of about 20-30 mm between sheets.
The velocity of each sheet is adjusted to ensure the front edges of the pair of sheets are aligned. A separate transfer module then delivers the pair of sheets onto a roller table which changes their direction by 90 degrees so that they can enter the Smart-binder one behind the other.

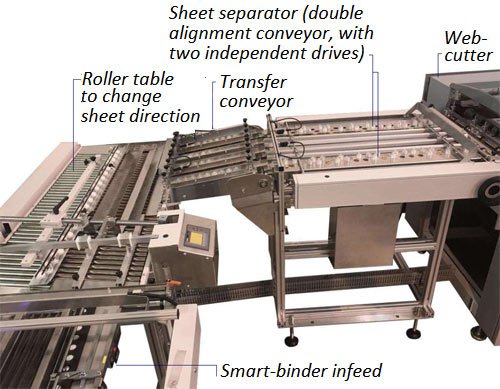

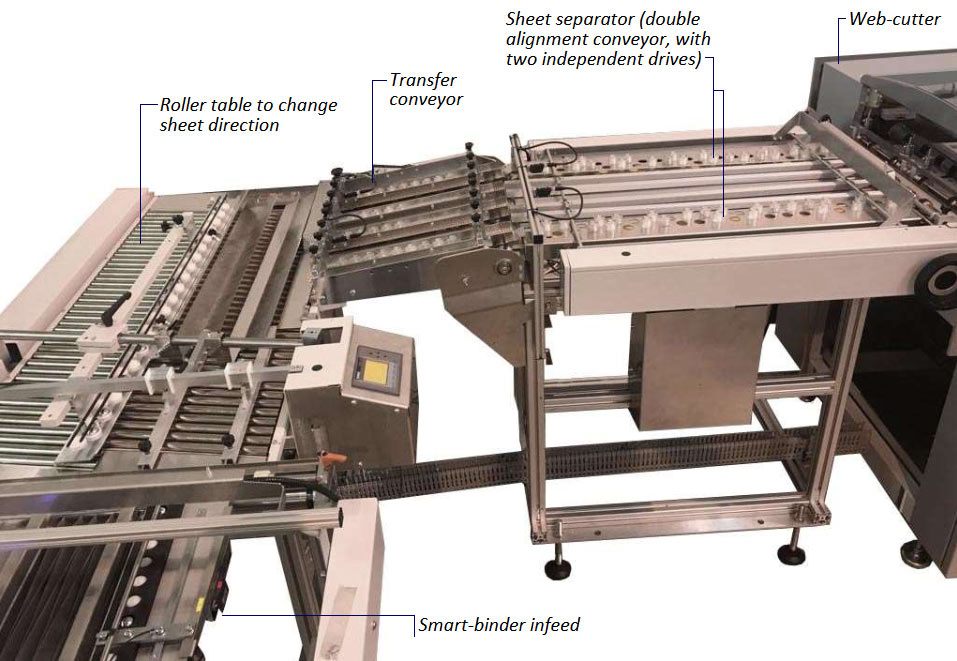

Roller table to change
Sheet separator (double
alignment conveyor, with
two independent drives
The maximum web speed to ensure reliable direction change is approximately 60 meters/min (197 ft/min), which results in approximately 375 four-page sheets/min (1,500 pages/min). Paper stock weight must be at least 70 gsm for reliable direction change.
