IBIS Smart-binder options - Booklet corner rounder and spine squarer ARSD-100

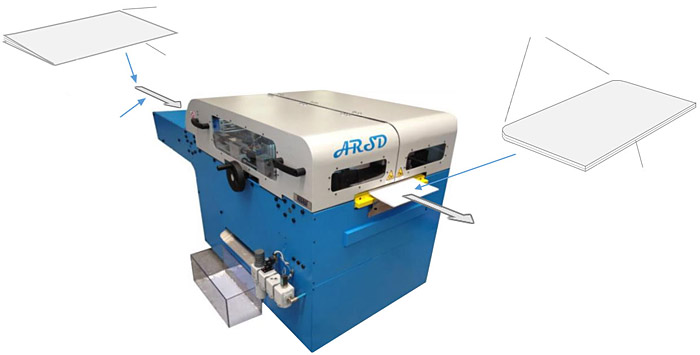

The ARSD-100 module maybe be connected in-line to the Smart-binder delivery conveyor in order to round the corners of the booklet and/or square the booklet spine


View a video of the ARSD-100 in operation

A cutting die is used to round the corners and high-pressure clamps are used to square the spine. Touch screen controls allow the operator to select either one cut or two rounding cuts, or to select only spine-squaring, or only corner-rounding. The finished booklets are then delivered onto an optional shingle delivery conveyor MS45 DC, or directly into the booklet stacker BSS-10 or BSS-11.

Note: If only spine-squaring is required then refer to the ARSD-S-100 option. The spine-squaring function of the ARSD-100 is (like the ARSD-S-100) faster and can handle a thicker booklet, compared with the lower-cost spine squarer option SM-101.

Technical specification:

Maximum speed: 3,200 copies/hour
Minimum booklet thickness 2 mm
Maximum booklet thickness 7 mm
Minimum size 210 mm spine length - 150 mm width
Maximum size 420 mm spine length - 330 mm width
High pressure air supply required 7 Bar
Electrical Power required 2 KW
