Combined saddle-binding and perfect binding systems

Combined saddle-binding and perfect binding systems, SB-4 & SB-5

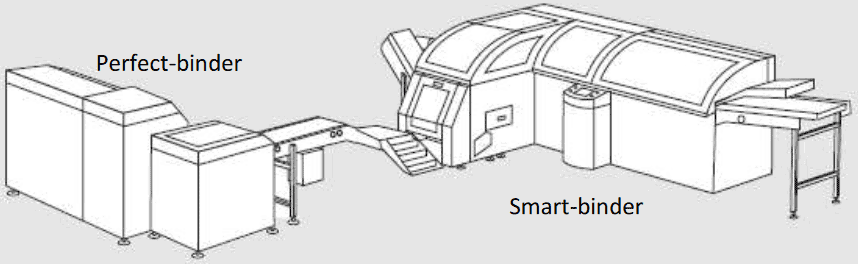

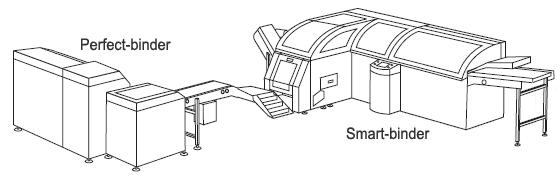

The Smart-binder models SB-4 and SB-5 include an additional in-line 'perfect-binder', either the

  • '1-clamp' PB600B (with max output speed of 400 books/hr)
    or the
  • '5-clamp' PB-1500W (max output speed 1500 books/hr)

which enables the system to produce not only saddle-bound booklets up to 10mm thick , but also perfect-bound books up to 60mm thick (with the PB-600B) or up to 70m thick (with the PB-1500W) using either hot-melt or PUR glue.
Optional in-line book trimming is available for both perfect binders.
Video: Smart-binder SB-4 with Oce printers View
Video: Smart-binder SB-4 with in-line clamp perfect binder PB-600B View



Product Details

Smart-binder brochure
Smart-binder Product Guide
Specifications, SB-4/SB-5
Tabulated Smart-binder range
Smart-binder features & advantages

Additional Smart-binder videos are available Here

Smart-binder SB-4 One-stop-shop



If perfect bound books are needed then the sheets are collected into folded ‘signatures’, typically containing 16 – 28 pages, which may be ISG cold glued on the spine fold. These signatures are delivered to the inline perfect binder and optional book trimmer.

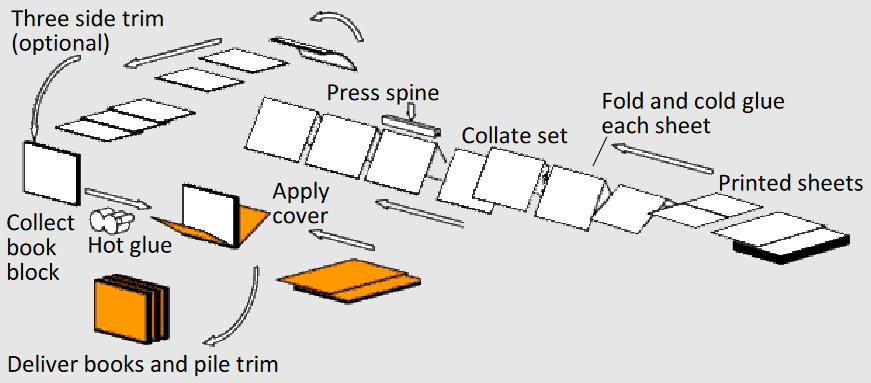

SB-4 Process Schamatic
  The ultimate, flexible book-finishing system
View product specifications HERE
  • Saddle-stitched booklets

  • Saddle-bound ISG cold-glued booklets

  • Perfect bound books up to 60mm thick (with the in-line PB-600B perfect binder) or 70mm thick (with the PB-1500W perfect binder) made from ISG-glued signatures

  • In-line thick book trimming available

Smart-binder SB-5 One-stop-shop

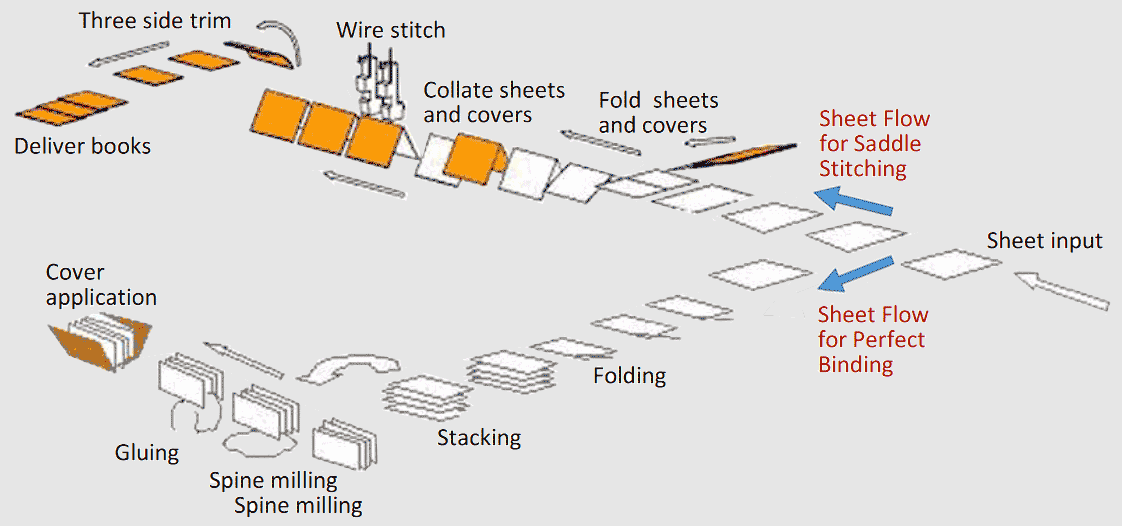

  SB-5 Process Schematic
  The ultimate, flexible book-finishing system
View product specifications HERE
  • Saddle-stitched booklets

  • Saddle-bound ISG cold-glued booklets

  • Perfect bound books up to 60mm thick (with the in-line PB-600B perfect binder) or 70mm thick (with the PB-1500W perfect binder) made from ISG-glued signatures

  • In-line thick book trimming available

3-knife book trimmers

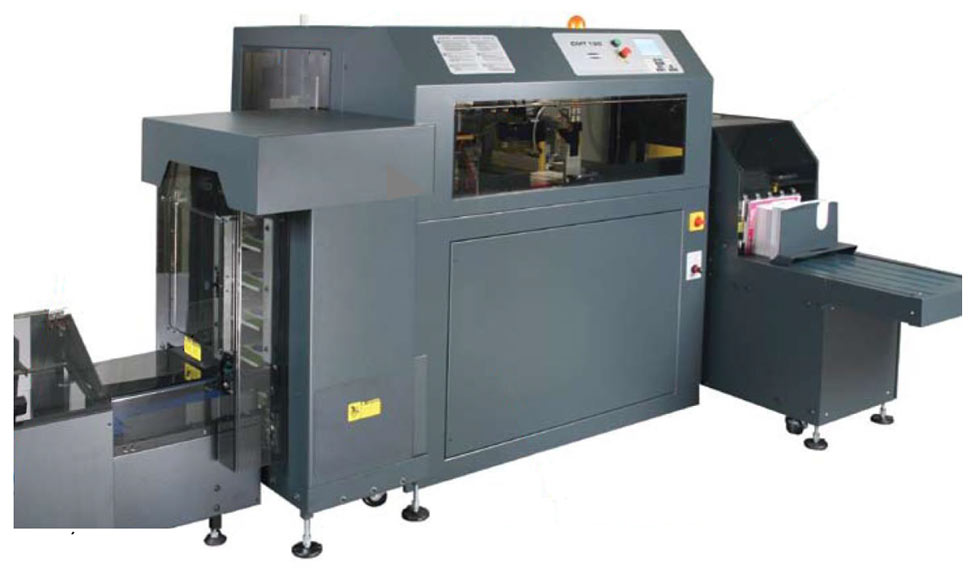

The PB-600B and PB-1500W perfect binders can be supplied together with an in-line (or off-line) 3-knife book trimmer
(CMT-130 in-line, photo right).

Various models are:

CMT-130
CMT-330

Refer to IBIS for detailed specifications.



Video

3-knife book trimmer, CMT-130
